Melamine Tableware Automatic Weighing & Material Batching Machine

Markenbezeichnung:	DONGXIN
Modellnummer:	1350L x 800B x 2350H
Mindestbestellmenge:	1
Preis:	2815
Zahlungsbedingungen:	L/C, T/T
Lieferfähigkeit:	20

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

China

Zertifizierung:

SGS

Stromspannung:

220 V, 380 V, 220 V/50 Hz, 220 V/380 V, 60 Hz

Automatische Note:

Automatisch, Andere, Halbautomatisch

Verpackungstyp:

Taschen, Beutel, Film, Folie, Fass

Abmessung (L*B*H):

ca. 5*2*3,5m für die gesamte Verpackungslinie, (L)4323X(B)2998X(H)3700mm,(L)172-(B)1030-(H)2254mm,(L

Typ:

Multifunktionsverpackungsmaschine, vertikale Form, andere, Abfüllmaschine

Funktion:

Füllung, Versiegelung, Verpackung, Kennzeichnung, Schneiden

Garantie:

1 Jahr, 12 Monate, 2 Jahre, 1 Jahr für automatische Wiege- und Verpackungsmaschine, ein Jahr

Verpackungsgeschwindigkeit:

5–60 Beutel/Min., 5–60, 10–20 Beutel/Min. je nach Verpackungskapazität, 10–50 Beutel/Min., 20–40 Beu

Material:

Edelstahl/lackierter Stahl, 304SS, Edelstahlmaterial SUS 304, Edelstahl 304/316, komplett aus Edelst

Hauptfunktion:

Beschwerungsverpackung, Füll- und Versiegelungsverpackung, automatische Form, automatische Wiege- un

Verpackung Informationen:

Stretchfolie aus Kunststoff

Versorgungsmaterial-Fähigkeit:

Hervorheben:

Melamine tableware batching machine

Automatic weighing material dispenser

Precision material dosing machine

Produktbeschreibung

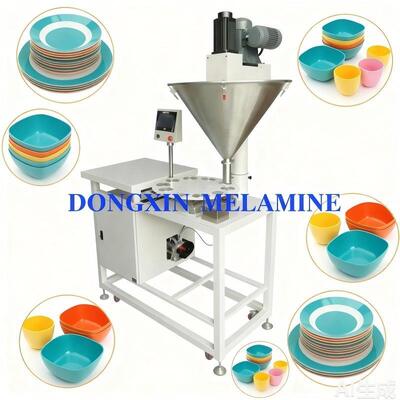

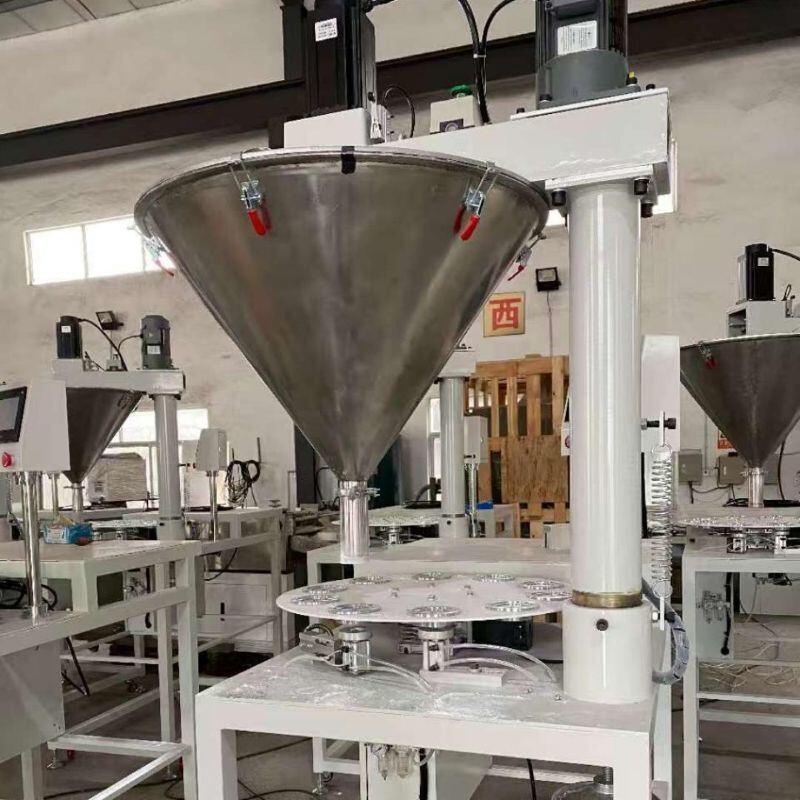

Melamine Tableware Automatic Weighing & Material Batching Machine

Automatic Weighing Machine for Melamine Tableware

The Automatic Weighing Machine for Melamine Industry is an intelligent powder batching solution specifically engineered for melamine tableware manufacturing. This advanced equipment automates the precise measurement and distribution of melamine molding compound (A5 grade), urea moulding powder, and other thermosetting materials, ensuring consistent product quality and significantly reducing material waste and labor costs.

Key Features & Technical Specifications

Precision Weighing Technology

Weighing Accuracy: Deviation tolerance ≤±2g
Weighing Range: 5g - 3000g per batch (adjustable for different product specifications)
Production Efficiency: ≤10 seconds per mold cycle (C/T)
Equipment Load Rate: Operational uptime ≥97%

Advanced Control Systems

Control Method: PLC intelligent control with touchscreen interface
Programming: Parameter modification on touch screen for easy operation
Communication Interface: Supports RS232/485 protocol
Motion Resolution: Conveying precision of 5mm
Repeated Positioning Accuracy: ≤±0.5mm for robotic handling

Physical Specifications

Dimensions	1500×650×2200mm (L×W×H) / 1400×850×2400mm (alternative model)
Input Voltage	AC 220V 50Hz or AC 380V 50Hz
Maximum Power	530W (220V) / 2.3KW (alternative configuration)
Air Source Pressure	0.4 - 0.6 MPa
Air Consumption	3.0 L/min
Hopper Capacity	25 - 40KG (single bag loading)
Machine Weight	200 - 280KG

Core Advantages for Melamine Manufacturers

Unmatched Weighing Precision

Utilizing world-renowned load cell sensors and electronic-mechanical dual-induction weighing systems, the machine eliminates human error in powder measurement. This ensures every melamine product receives identical material dosage, preventing defects such as short shots, flash formation, or density inconsistencies in final tableware products.

Significant Cost Reduction

Material Savings: Reduces melamine powder waste by 15-30% compared to manual weighing
Labor Optimization: Eliminates 1-2 operators per production line
Efficiency Gains: Increases overall production efficiency by 30%+ through continuous operation

Flexible Configuration Options

Adjustable Discharge Methods: Multiple blanking options available (39mm or 50mm interchangeable discharge openings)
Variable Lift Table: Height adjustment capability (±10cm) for ergonomic integration
Data Management: Electronic metering with counting, shortage alarm, cumulative recording, and data upload capabilities

Seamless Production Line Integration

Perfectly matches with automatic melamine molding machines, grinding/polishing equipment, and robotic handling systems to create fully automated manufacturing cells. Compatible with single-color and double-color melamine tableware production processes.

Applications in Melamine Industry

Primary Applications

Melamine Dinnerware: Plates, bowls, cups, mugs, saucers
Serving Items: Trays, serving platters, compartment trays
Specialty Products: Custom-shaped tableware with decals and gold rim designs
Hotel & Restaurant Ware: Heavy-duty commercial-grade melamine crockery

Compatible Materials

A5 Melamine Molding Compound (Food grade, premium quality)
A1 Urea-Formaldehyde Powder (Electric jade powder)
LG Glazing Powder (Surface finishing compound)
Bakelite & Phenolic Resins (Thermosetting materials)
