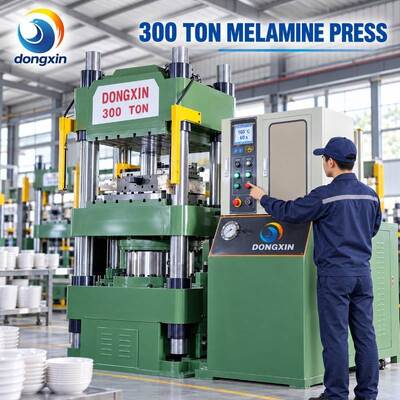

Melamine Tableware Hydraulic Press Machine

Our melamine tableware hydraulic press machine is specially designed for the mass production of melamine dinnerware, including melamine plates, bowls, spoons, cups, trays and other melamine crockery. Adopting a mature hydraulic driving system and heating molding technology, this equipment compresses melamine molding powder under high temperature and high pressure to form finished melamine tableware. It is widely used in melamine tableware factories, with stable running performance, easy operation and long service life. It is the core forming equipment in the melamine tableware production line.

• Stable Hydraulic System High-quality hydraulic components ensure even pressure output with no pressure fluctuation during molding. Uniform pressure helps finished products achieve a smooth surface with no bubbles, no deformation and consistent product quality. Low noise and minimal oil leakage reduce daily maintenance costs.
• Independent Temperature Control Module Each heating plate supports separate temperature adjustment. The temperature range fits the curing requirements of melamine powder. Constant temperature control allows the melamine raw material to cure fully, improving product hardness, gloss and anti-fall performance.
• Customizable Opening Stroke & Pressure Molding pressure, mold opening height and pressing time can be adjusted according to different melamine molds and product specifications. Suitable for producing thin and thick melamine tableware of various sizes.
• Optional PLC Automatic Control The upgrade version is equipped with a PLC touch screen. Workers can set pressing time, heating temperature, pressure and cycle times on the screen. Features include automatic timing, automatic pressure maintaining and alarm reminders for abnormal status, reducing manual operation errors and improving production efficiency.
• Heavy-duty Machine Frame Integrated cast steel frame with high rigidity and anti-deformation performance under long-time high-pressure working. The whole machine can run continuously for 24 hours to meet large-volume factory order demands.
• Easy to Match Melamine Molds Compatible with standard melamine tableware molds. Quick mold replacement allows one machine to produce different styles of melamine tableware by changing molds. Good compatibility with the melamine flower paper transfer process.
• Energy Saving Design Optimized heating circuit reduces power consumption. Heat insulation structure reduces heat loss, helping factories save electricity costs in long-term production.

Put melamine molding powder into the mold cavity and close the mold. The hydraulic cylinder provides stable high pressure while the heating plate heats the mold. Under fixed temperature and pressure for a certain holding time, the melamine powder melts, flows and cross-links for curing molding. After curing is finished, the machine opens the mold and workers take out the semi-finished melamine ware, which then proceeds to the next process such as trimming, grinding, flower paper transfer and polishing.

This hydraulic press machine is ideal equipment for factories producing food-grade melamine tableware. It supports household melamine dinnerware, restaurant melamine crockery, children's melamine tableware, hotel melamine trays and customized melamine tableware with patterns. It can work separately or connect with an automatic feeding machine and automatic grinding machine to build a fully automatic melamine tableware production line.

1. Machine parameter and layout customization according to the customer's factory workshop
2. Technical support for melamine mold matching and production formula guidance
3. English operation manual and operation video
4. Overseas engineer on-site installation & training (optional)
5. Long-term spare parts supply and after-sales technical consultation
6. 12 months warranty for main components
