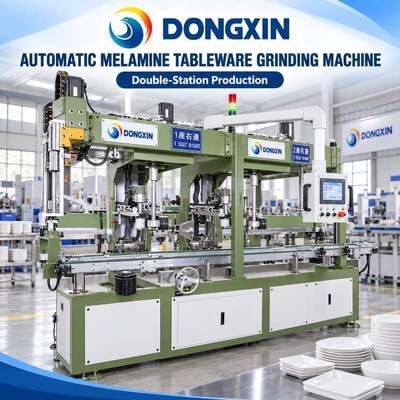

Automatic Grinding Machine | Automatic Edge Polishing Machine For Melamine Tableware

Brand Name:	Dongxin
Model Number:	H001
MOQ:	A 20'GP
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	50 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

GUANGDONG,CHINA.

Certification:

ISO9001:2018

Coolant Pump Flux:

501/min

Working Pressure:

0.5-0.8 MPa

Function:

Edge Grinding & Polishing

Tooth Surface Angle:

5 Degrees To+30 Degrees

Processing Types:

Robot Auto Processing Grinding Polishing

Cooling System:

Water Cooling

Operation Mode:

Fully Automatic, PLC Controlled

Cnc Or Not:

Cnc

Packaging Details:

Stretch Film

Supply Ability:

50 Sets Per Month

Highlight:

Automatic grinding machine for melamine tableware

Automatic edge polishing machine

Melamine tableware grinding machine

Product Description

Automatic Grinding Machine | Automatic Edge Polishing Machine For Melamine Tableware

Product Highlights

Full Auto Loading & Unloading: Automatic feeding and discharging structure. One operator can manage multiple machines simultaneously, greatly cutting labor cost and solving polishing worker shortage.

Three-Stage Integrated Grinding & Polishing: Combine coarse grinding, fine grinding and wax polishing in one unit. Thoroughly eliminate mold burrs, parting lines and rough edges, delivering smooth rounded edges for melamine tableware.

Intelligent PLC Touch Screen Control: Store multiple groups of grinding parameters for different tableware styles. Switch recipes within 5-10 minutes, simple operation for ordinary factory workers without complex training.

Wide Compatibility for Various Shapes: Quick-change fixtures support round, oval, square and special-shaped melamine plates, bowls and trays. Flexible for multi-variety production.

Heavy-Duty Vibration-Resistant Frame: High-strength welded steel frame reduces vibration under long continuous operation, stable performance and extended service life.

Dust Collection Interface & Safety Protection: Reserved port for dust collector to maintain clean workshop. Equipped with safety interlock and emergency stop button to ensure operation safety.

Complete Production Line Compatibility: Can run independently or seamlessly connect with melamine press machine, automatic weighing machine and preheating machine to build a full automatic melamine tableware manufacturing line.

Product Overview

The Automatic Grinding Machine is professional post-processing equipment specially designed for melamine tableware manufacturing. After hot compression molding by melamine press machine, melamine crockery will generate burrs and rough edges at the parting line, which affects product safety and appearance.

This automatic edge polishing machine completes burr removal and edge finishing automatically. With auto feeding and discharging system, it replaces traditional manual polishing, solves inconsistent surface quality and high labor cost issues. It can process various shapes of melamine plates, bowls and trays, working standalone or cooperating with other melamine machines to form a complete automated production line.

Technical Parameters

Item	Specification
Product Name	Automatic Grinding Machine
Processing Workflow	Coarse Grinding + Fine Grinding + Wax Polishing
Processing Objects	Round, oval, square, special-shaped melamine plates, bowls, trays
Control System	PLC + Touch Screen Full Automatic Control
Production Capacity	Round wares: 600-840 pcs/h; Special-shape wares: 400-600 pcs/h
Total Power	7.5 KW
Working Air Pressure	0.5-0.8 MPa
Machine Dimension	2850 * 1450 * 2000 mm
Machine Weight	1450-1800 KGS
Power Supply	380V 50Hz / Custom Local Voltage
Operation Mode	Automatic Loading & Unloading
Warranty	12 Months
MOQ	1 Set

OEM / ODM Customization Service

Custom grinding heads and special fixtures for oversized or irregular melamine tableware
Adjust grinding speed and pressure according to different product thickness
Custom voltage and frequency to adapt power grid standards of different countries
Upgrade high-efficiency dust removal system and automatic sorting function
Support multi-language touch screen, custom machine color and logo

Application Scope

Edge deburring and polishing for melamine plates, bowls, trays and dinnerware sets
Surface finishing equipment for hotel, restaurant, school and canteen commercial melamine crockery
Post-processing machine for finished products made of A3, A5, UMC melamine moulding compound
Supporting equipment for fully automatic melamine tableware production line

Quality Control & Packaging

The machine adopts high-rigidity welded steel frame with stress relief treatment. Core pneumatic, electric and grinding components are selected from reliable brands. Every unit undergoes 72-hour continuous running test, grinding precision test and safety inspection before delivery.

The machine is wrapped with waterproof plastic film and packed in export fumigated wooden case to avoid collision and moisture damage during long sea transportation. Complete English operation manual, circuit diagram and spare parts list are provided.

Frequently Asked Questions

What types of melamine products can this grinding machine process?

It can handle round, oval, square and special-shaped melamine plates, bowls and trays. Custom fixtures can be manufactured for irregular melamine tableware.

How many workers are needed for this automatic grinding machine?

The machine realizes automatic feeding and discharging. One ordinary worker can manage 2-3 sets of machines at the same time, no professional polishing skills required.

Can this machine connect with my existing melamine production equipment?

Yes. It can work independently or dock with melamine press machine, automatic weighing machine and preheating machine. Our technical team can adjust docking scheme according to your current production line.

How long to switch between different tableware models?

Multiple grinding parameter recipes are saved in PLC touch screen. Replacing fixtures and adjusting settings only takes 5-10 minutes, suitable for flexible multi-variety production.

What after-sales services do you provide?

12-month whole machine warranty. We provide English operation manuals and operation videos. Long-term remote technical support and fault diagnosis. Spare parts are supplied at factory cost, on-site installation and training can be negotiated.
