| Brand Name: | DONGXIN |
| Model Number: | 400T |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 20 Sets/Month |

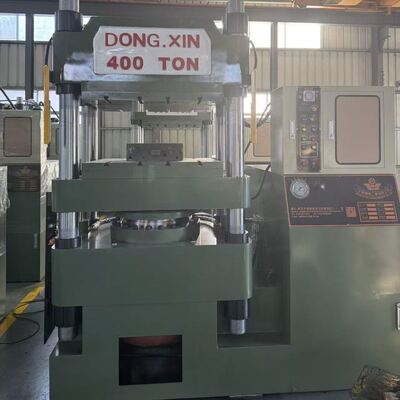

The 400 Ton Hydraulic Melamine Press Machine is an industrial compression molding machine specially designed for efficient production of melamine tableware. With 400 tons of stable hydraulic pressing force, intelligent PLC control and controlled heating technology, the machine provides reliable molding performance for medium and large melamine tableware products.
It is suitable for processing Melamine Moulding Compound (MMC) and can be matched with different molds for producing:
The 400-ton configuration provides a practical balance between molding pressure, production flexibility and industrial manufacturing efficiency, making it suitable for both expanding factories and established melamine tableware production lines.
The machine provides a maximum molding pressure of: 400 TON. The hydraulic compression system delivers stable and controlled pressing force throughout the molding process.
The machine is equipped with an intelligent PLC control system for centralized production management. Operators can control key parameters including:
The heating system provides controlled temperature distribution during compression molding with advantages including:
The machine uses hydraulic compression molding technology to convert preheated melamine molding compound into finished tableware. The molding process combines:
The 400-ton machine can be matched with different molds according to customer requirements including:
PLC-controlled automatic operation reduces repetitive manual adjustment during the molding process with benefits:

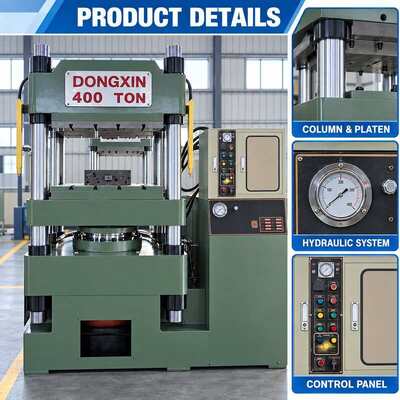

| Component | Function |
|---|---|
| 400 Ton Hydraulic System | Provides powerful and stable molding pressure |
| PLC Control System | Controls the automatic molding process |
| Touchscreen HMI | Provides parameter setting and machine operation |
| Multi-Zone Heating Plates | Provides controlled mold heating |
| Hydraulic Cylinder | Generates compression force |
| Pressing Platform | Supports mold installation and production |
| Heavy-Duty Machine Frame | Maintains structural stability during pressing |
| Electrical Control Cabinet | Controls electrical and automation functions |
| Temperature Control System | Manages heating parameters |
| Safety Protection System | Supports safe industrial operation |
| Specification | Details |
|---|---|
| Product Name | 400 Ton Hydraulic Melamine Press Machine |
| Machine Type | Hydraulic Melamine Tableware Press Machine |
| Pressing Capacity | 400 Ton |
| Control System | PLC Intelligent Control |
| Operation Mode | Automatic |
| Molding Method | Hydraulic Compression Molding |
| Heating System | Multi-Zone Electric Heating |
| Heating Plate Size | Customized According to Mold |
| Mold Compatibility | Customized Melamine Tableware Molds |
| Raw Material | Melamine Moulding Compound (MMC) |
| Product Range | Plates / Bowls / Cups / Trays / Dinnerware Sets |
| Pressure Adjustment | Adjustable According to Molding Requirements |
| Molding Time | Adjustable |
| Temperature | Adjustable |
| Operating Voltage | 380V / Customized |
| Main Application | Melamine Tableware Manufacturing |
| Brand | DONGXIN |
| Place of Origin | Fujian, China |
| MOQ | 1 Set |
| Packaging | Export Standard Packaging |
| OEM/ODM | Available |

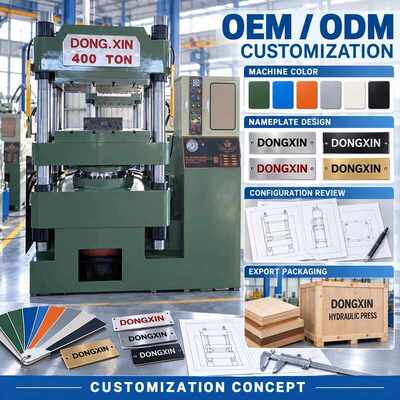

DONGXIN provides customized 400-ton hydraulic press solutions according to different melamine tableware products, molds and factory production requirements.
Heating plate dimensions can be configured according to mold requirements. Available configurations can be developed for:
Customized melamine molds can be supplied for various tableware products. Customers can provide:
The control program can be configured according to different molding processes with adjustable parameters including:
Standard industrial voltage: 380V / 50Hz. Other voltage configurations can be supplied according to destination-country requirements.
The 400-ton press machine can be combined with supporting equipment to create a complete melamine tableware production line:
Suitable for various plate types including round plates, square plates, restaurant plates, serving plates, and decorative plates. The 400-ton hydraulic system provides stable molding pressure for different plate structures and dimensions.
Suitable for rice bowls, soup bowls, serving bowls, deep bowls, and restaurant bowls. Different bowl molds can be installed according to customer production requirements.
Suitable for serving trays, food trays, hotel trays, cafeteria trays, and customized trays. The machine can be matched with different tray mold designs.
Suitable for drinking cups, restaurant cups, children's cups, and customized melamine cups. Product specifications can be adjusted through corresponding mold configurations.
Suitable for manufacturing coordinated collections including plates, bowls, cups, trays, and serving pieces. This allows tableware manufacturers to develop complete OEM and private-label collections.
Suitable for producing hotel dinnerware, restaurant tableware, catering products, and commercial serving ware. The 400-ton configuration is particularly suitable for manufacturers producing different commercial tableware specifications.
Technical requirements are confirmed according to tableware type, product size, mold dimensions, production requirements, and factory voltage.
Machine configuration is determined according to customer's production requirements including hydraulic system, machine frame, heating system, PLC control, and mold platform.
Main mechanical components are manufactured and prepared including machine frame, hydraulic cylinder, heating plates, pressing platform, and hydraulic components.
Control system installation and programming including PLC installation, touchscreen configuration, temperature controller installation, electrical wiring, and safety circuit integration.
Mechanical, hydraulic and electrical components are integrated into the complete press machine with focus on structural alignment, hydraulic connection, heating plate position, and electrical connection.
Technicians test and adjust hydraulic pressure, cylinder movement, pressure holding, and pressure release to achieve stable operation under production conditions.
Heating system testing for temperature control, heating stability, temperature distribution, and controller response.
Complete automatic production sequence testing including machine closing, pressurizing, exhaust cycle, pressure holding, mold opening, and cycle reset.

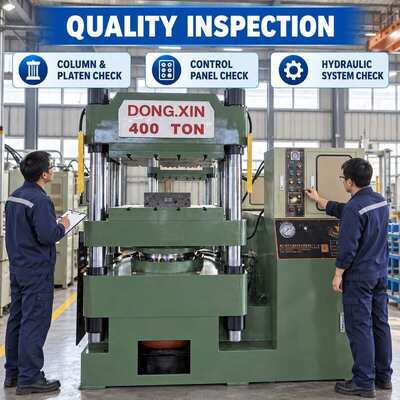

Before shipment, the machine undergoes final operational inspection including 400 ton pressure system, PLC operation, hydraulic stability, heating performance, electrical system, automatic cycle, and safety functions.
DONGXIN performs inspection during manufacturing, assembly and final machine testing including:
The machine is prepared for international transportation with suitable export protection including waterproof protection, protective film, machine fixing, component protection, and reinforced export packaging. Available transportation methods include sea freight, container loading, and international logistics.
The machine can be used for manufacturing melamine plates, bowls, cups, trays, dinnerware sets, restaurant tableware, and customized products. The actual product range depends primarily on mold dimensions and product design.
A 400-ton configuration provides strong hydraulic molding pressure while maintaining flexibility for a wide range of melamine tableware products. It is suitable for manufacturers producing medium and large tableware or operating multiple product specifications.
Yes. The machine uses an intelligent PLC control system for managing pressure, temperature, molding time, exhaust cycle, and automatic production sequence. This helps simplify operation and maintain consistent molding parameters.
Yes. The machine can be matched with customized molds for plates, bowls, cups, trays, serving ware, and special-shaped tableware. Final mold compatibility should be confirmed according to mold dimensions and machine configuration.
Yes. DONGXIN can provide supporting equipment including automatic weighing machine, high frequency preheating machine, 400 ton hydraulic melamine press machine, melamine tableware mold, and automatic grinding machine. Equipment configuration can be customized according to the customer's products, factory layout and production requirements.
