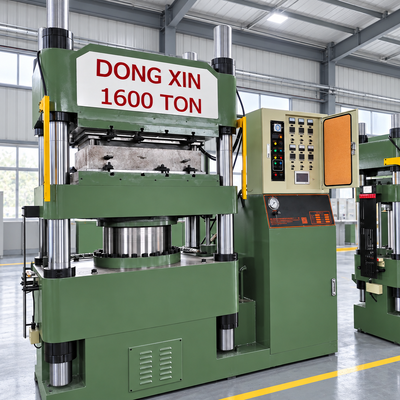

1600T Heavy Duty Hydraulic Melamine Press Machine with PLC Control for Large Tableware Production

Brand Name:	DONGXIN
Model Number:	1600 TON
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	20 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, ISO

Product Name:

1600T Hydraulic Melamine Press Machine

Pressing Force:

1600 Tons

Machine Type:

Hydraulic Melamine Press Machine

Molding Method:

Hydraulic Compression Molding

Control System:

PLC Control

Operation Mode:

Automatic / Semi-Automatic

Raw Material:

Melamine Moulding Compound (MMC)

Application:

Melamine Tableware / Crockery Manufacturing

Packaging Details:

Export Standard Wooden Case Package

Supply Ability:

20 Sets/Month

Highlight:

1600 Tons Pressing Force Hydraulic Melamine Press Machine

PLC Control Melamine Press Machine

Heavy Duty Hydraulic Press Machine

Product Description

1600T Heavy Duty Hydraulic Melamine Press Machine With PLC Control For Tableware Production

The 1600 Ton Heavy-Duty Hydraulic Melamine Press Machine is a high-pressure compression molding solution developed for manufacturers requiring significantly higher molding force, larger mold compatibility and stable industrial production.

Product Core Advantages & Main Structure

Product Overview

With a nominal pressing force of 1600 tons, the machine is designed for demanding thermosetting compression molding applications where conventional lower-tonnage presses may not provide sufficient pressure or mold capacity.

The equipment combines:

1600 Ton Hydraulic Pressure
PLC Intelligent Control
Heavy-Duty Machine Structure
Controlled Heating
Adjustable Molding Parameters

It is suitable for processing Melamine Moulding Compound (MMC) and can be configured according to different product dimensions, mold structures and production requirements.

Typical applications include:

Large Melamine Plates
Deep Bowls
Large Serving Trays
Hotel Tableware
Oversized Serveware
Multi-Cavity Molds
Customized Molded Products

Powerful 1600 Ton Hydraulic Pressing Force

The machine provides a nominal pressing capacity of 1600 TON. The high-pressure hydraulic system delivers strong compression force during the molding cycle.

High Pressing Capacity
Stable Pressure Output
Heavy Mold Compatibility
Controlled Compression

Designed for Large & Heavy-Duty Molding

The high-tonnage structure makes the machine suitable for products and molds requiring greater compression capability.

Large Product Dimensions
Heavy Molds
Deep Products
Large Serving Ware
Multi-Cavity Production

PLC Intelligent Process Control

The integrated PLC system provides centralized control over the compression molding process. Operators can manage key production parameters such as pressing pressure, molding time, heating parameters, exhaust cycle, pressure holding, and production sequence.

Heavy-Duty Hydraulic System

A high-capacity hydraulic system provides the force required for 1600-ton compression molding, designed around pressure generation, pressure holding, controlled movement, pressure release, and repeated production cycles.

Reinforced Machine Structure

High-tonnage compression requires a stronger machine structure than conventional small and medium presses, focusing on structural rigidity, high-pressure resistance, stable mold support, and long-term industrial operation.

Controlled Heating for Thermosetting Molding

The heating system provides controlled temperature conditions during melamine compression molding, accommodating different MMC formulations, product thicknesses, mold structures, and molding cycles.

Flexible Mold Compatibility

The machine can be configured for customized molds including large plate molds, deep bowl molds, serving tray molds, multi-cavity molds, special-shaped molds, and customized industrial molds.

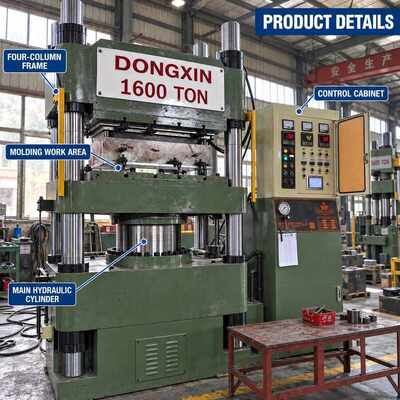

Main Machine Structure

Component	Function
1600 Ton Hydraulic Press System	Generates high compression force
Main Hydraulic Cylinder	Provides controlled pressing movement
Heavy-Duty Machine Frame	Supports high-pressure molding operation
Upper & Lower Platen	Supports mold installation and compression
PLC Control System	Manages molding parameters and machine sequence
Touchscreen HMI	Provides parameter setting and operating interface
Heating System	Provides controlled mold heating
Hydraulic Power Unit	Supplies hydraulic pressure and oil circulation
Electrical Control Cabinet	Controls electrical and automation components
Pressure Control System	Adjusts and monitors molding pressure
Safety Protection System	Supports controlled industrial operation

Product Parameters

Parameter	Specification
Product Name	1600 Ton Hydraulic Melamine Press Machine
Machine Type	Heavy-Duty Hydraulic Compression Molding Machine
Model	1600T
Nominal Pressing Force	1600 Tons
Molding Method	Hydraulic Compression Molding
Control System	PLC Intelligent Control
Operation Mode	Automatic / Semi-Automatic
Raw Material	Melamine Moulding Compound (MMC)
Heating System	Controlled Electric Heating
Pressure Setting	Adjustable
Molding Time	Adjustable
Pressure Holding Time	Adjustable
Exhaust Cycle	Adjustable
Temperature Setting	Adjustable
Mold Compatibility	Customized
Platen Size	Customized According to Mold
Machine Stroke	Customized According to Product & Mold
Hydraulic System	Heavy-Duty High-Pressure Hydraulic System
Main Application	Melamine & Thermosetting Product Molding
Product Range	Large Plates / Bowls / Trays / Serveware / Customized Products
Voltage	Customized According to Destination Market
Brand	DONGXIN
Place of Origin	China
MOQ	1 Set
OEM/ODM	Available
Packaging	Export Standard Protective Packaging

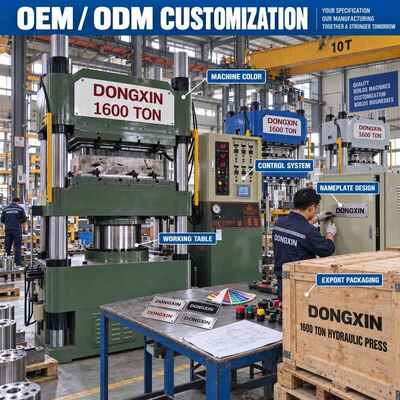

OEM/ODM Customization

DONGXIN provides customized 1600-ton hydraulic molding solutions according to product dimensions, mold specifications, factory conditions and target production capacity.

Mold Platform Customization

The working platen can be engineered according to the customer's mold. Important information includes mold length, width, height, weight, and cavity quantity.

Machine Stroke Customization

Different products require different opening distances and molding strokes. The stroke can be evaluated according to product depth, mold height, mold opening requirement, and product removal method.

Hydraulic Configuration

The hydraulic system can be configured according to the requirements of the 1600-ton press, including pressing force, pressure holding, cylinder movement, molding cycle, and production frequency.

Heating System Customization

Heating configuration can be matched with platen dimensions, mold dimensions, product structure, and molding material.

PLC Program Customization

The PLC program can be configured around the customer's molding process, including adjustable production parameters for closing sequence, pressing pressure, heating time, exhaust cycle, pressure holding, and mold opening.

Voltage & Electrical Configuration

Electrical specifications can be matched according to destination-country factory requirements including voltage, frequency, and phase.

Customized Mold Development

DONGXIN can match the machine with molds for large dinner plates, serving bowls, large trays, hotel serveware, special-shaped tableware, and customized products.

Application Range

Large Melamine Plate Production

Suitable for manufacturing large dinner plates, presentation plates, serving plates, restaurant plates, and decorative plates.

Large & Deep Bowl Manufacturing

Applicable products include deep serving bowls, salad bowls, large food bowls, and commercial bowls.

Large Serving Tray Production

Suitable for hotel trays, restaurant trays, cafeteria trays, food service trays, and large serving trays.

Hotel & Restaurant Serveware

The machine can be configured for commercial products such as large platters, buffet serveware, presentation dishes, catering tableware, and hotel serving pieces.

Multi-Cavity Mold Production

High-tonnage configurations can be evaluated for suitable multi-cavity molds for small plates, bowls, cups, and tableware components.

Customized Thermosetting Products

In addition to conventional tableware, the machine can be evaluated for suitable thermosetting compression molding projects based on raw material, product dimensions, mold design, required pressure, and heating process.

Production, Quality Control & Packaging

Machine Manufacturing Process

The manufacturing process includes technical requirement analysis, engineering & structural design, heavy-duty component manufacturing, hydraulic system assembly, heating system installation, PLC & electrical integration, hydraulic pressure debugging, automatic cycle testing, and final factory inspection.

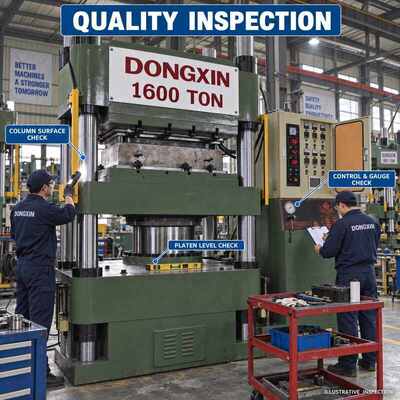

Quality Control

Comprehensive quality control includes structural inspection, hydraulic inspection, heating inspection, PLC & electrical inspection, and final running test to ensure operating stability, hydraulic response, control sequence, heating performance, and safety functions.

Packaging & Shipping

The 1600-ton press is packaged with export standard protective packaging including waterproof covering, anti-moisture protection, component fixing, electrical cabinet protection, and accessory packaging. Transportation solutions include sea freight, container transportation, flat rack, and customized heavy equipment logistics.

Production Line Integration

The 1600-ton hydraulic press can be integrated with supporting equipment for melamine tableware manufacturing including automatic weighing, high frequency preheating, hydraulic press molding, automatic edge grinding, quality inspection, and packaging.

Frequently Asked Questions

What is the main advantage of a 1600 Ton Melamine Press Machine?

The primary advantage is its high compression capacity. A 1600-ton machine can be considered for demanding applications involving large products, large molds, heavy molds, deep products, and multi-cavity molding.

What products can the 1600-ton press manufacture?

Depending on the selected mold and machine configuration, it can be used for large melamine plates, bowls, serving trays, platters, hotel tableware, and customized molded products.

Does the machine include PLC control?

Yes. The PLC system can manage key production parameters such as pressing pressure, molding time, heating parameters, exhaust cycle, pressure holding, and automatic sequence.

Can you provide exact platen size, cylinder diameter and machine stroke?

These parameters should be determined according to the actual 1600-ton machine design and the customer's mold requirements. Customers should provide product dimensions, mold dimensions, mold height, mold weight, required stroke, and production requirements for proper configuration.

Can DONGXIN supply a complete production line together with the 1600-ton press?

Yes. A complete equipment solution can include automatic weighing machine, high frequency preheating machine, 1600 ton hydraulic press machine, customized melamine mold, and automatic grinding machine.
